dubbo的服务调用过程主要包括发送请求,编解码,服务降级,过滤器链处理,序列化,线程派发以及响应请求等步骤。本文主要分析请求的发送与接收,编解码,线程派发以及响应的发送与接收。
1. 服务调用过程:
远程调用请求的发送与接收的过程:
- 消费者通过代理对象Proxy发起远程调用,
- 接着通过网络客户端Client将编码后的请求发送给服务提供方的网络层,也就是Server。
- Server收到请求后对数据包进行解码,将解码后的请求发送至分发器Dispatcher,
- 再由分发器将请求派发到制定的线程池上,
- 最后由线程池调用具体的服务。
2.源码分析
2.1 服务调用方式
- Dubbo支持同步和异步两种调用方式,
- 其中异步调用还可以细分为“有返回值”和“无返回值”的异步调用。
- 无返回值的异步调用,是指消费者不用关心调用结果,Dubbo会直接返回一个空的RpcResult。
- 默认情况下Dubbo使用同步调用方式,使用异步调用需要消费方手动配置;
在服务引入的过程分析到客户端已经生成了代理类,下面是一个代理类的示例:
public class proxy0 implements ClassGenerator.DC, EchoService, DemoService {
// 方法数组
public static Method[] methods;
private InvocationHandler handler;
public proxy0(InvocationHandler invocationHandler) {
this.handler = invocationHandler;
}
public proxy0() {
}
public String sayHello(String string) {
// 将参数存储到 Object 数组中
Object[] arrobject = new Object[]{string};
// 调用 InvocationHandler 实现类的 invoke 方法得到调用结果
Object object = this.handler.invoke(this, methods[0], arrobject);
// 返回调用结果
return (String)object;
}
/** 回声测试方法 */
public Object $echo(Object object) {
Object[] arrobject = new Object[]{object};
Object object2 = this.handler.invoke(this, methods[1], arrobject);
return object2;
}
}
代理类的逻辑比较简单,
- 将运行时的参数存储到数组中,
- 然后调用InvocationHandler接口实现类的invoke方法,得到调用结果,最后将结果转型并返回给调用方;
下面看一下invoke方法走的逻辑:
public class InvokerInvocationHandler implements InvocationHandler {
private final Invoker<?> invoker;
public InvokerInvocationHandler(Invoker<?> handler) {
this.invoker = handler;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
String methodName = method.getName();
Class<?>[] parameterTypes = method.getParameterTypes();
// 拦截定义在 Object 类中的方法(未被子类重写),比如 wait/notify
if (method.getDeclaringClass() == Object.class) {
return method.invoke(invoker, args);
}
// 如果 toString、hashCode 和 equals 等方法被子类重写了,这里也直接调用
if ("toString".equals(methodName) && parameterTypes.length == 0) {
return invoker.toString();
}
if ("hashCode".equals(methodName) && parameterTypes.length == 0) {
return invoker.hashCode();
}
if ("equals".equals(methodName) && parameterTypes.length == 1) {
return invoker.equals(args[0]);
}
// 将 method 和 args 封装到 RpcInvocation 中,并执行后续的调用
return invoker.invoke(new RpcInvocation(method, args)).recreate();
}
}
InvokerInvocationHandler 中的 invoker 成员变量类型为 MockClusterInvoker,MockClusterInvoker 内部封装了服务降级逻辑。
public class MockClusterInvoker<T> implements Invoker<T> {
private final Invoker<T> invoker;
public Result invoke(Invocation invocation) throws RpcException {
Result result = null;
// 获取 mock 配置值
String value = directory.getUrl().getMethodParameter(invocation.getMethodName(), Constants.MOCK_KEY, Boolean.FALSE.toString()).trim();
if (value.length() == 0 || value.equalsIgnoreCase("false")) {
// 无 mock 逻辑,直接调用其他 Invoker 对象的 invoke 方法,
// 比如 FailoverClusterInvoker
result = this.invoker.invoke(invocation);
} else if (value.startsWith("force")) {
// force:xxx 直接执行 mock 逻辑,服务降级,不发起远程调用
result = doMockInvoke(invocation, null);
} else {
// fail:xxx 表示消费方对调用服务失败后,再执行 mock 逻辑,不抛出异常
try {
// 调用其他 Invoker 对象的 invoke 方法
result = this.invoker.invoke(invocation);
} catch (RpcException e) {
if (e.isBiz()) {
throw e;
} else {
// 调用失败,执行服务降级 mock 逻辑
result = doMockInvoke(invocation, e);
}
}
}
return result;
}
// 省略其他方法
}
这里不分析服务降级部分的doMockInvoke ,所以mock部分的逻辑不在分析;
this.invoker.invoke(invocation);这里调用Invoker对象的invoke方法,这块的Invoker我们直接分析默认的DubboInvoker内的Invoke实现
public abstract class AbstractInvoker<T> implements Invoker<T> {
public Result invoke(Invocation inv) throws RpcException {
if (destroyed.get()) {
throw new RpcException("Rpc invoker for service ...");
}
RpcInvocation invocation = (RpcInvocation) inv;
// 设置 Invoker
invocation.setInvoker(this);
if (attachment != null && attachment.size() > 0) {
// 设置 attachment
invocation.addAttachmentsIfAbsent(attachment);
}
Map<String, String> contextAttachments = RpcContext.getContext().getAttachments();
if (contextAttachments != null && contextAttachments.size() != 0) {
// 添加 contextAttachments 到 RpcInvocation#attachment 变量中
invocation.addAttachments(contextAttachments);
}
if (getUrl().getMethodParameter(invocation.getMethodName(), Constants.ASYNC_KEY, false)) {
// 设置异步信息到 RpcInvocation#attachment 中
invocation.setAttachment(Constants.ASYNC_KEY, Boolean.TRUE.toString());
}
RpcUtils.attachInvocationIdIfAsync(getUrl(), invocation);
try {
// 抽象方法,由子类实现
return doInvoke(invocation);
} catch (InvocationTargetException e) {
// ...
} catch (RpcException e) {
// ...
} catch (Throwable e) {
return new RpcResult(e);
}
}
protected abstract Result doInvoke(Invocation invocation) throws Throwable;
// 省略其他方法
}
上面是AbstractInvoker抽象类,doInvoke是一个抽象方法,需要由其子类实现,这里看一下DubboInvoker的实现;
public class DubboInvoker<T> extends AbstractInvoker<T> {
private final ExchangeClient[] clients;
protected Result doInvoke(final Invocation invocation) throws Throwable {
RpcInvocation inv = (RpcInvocation) invocation;
final String methodName = RpcUtils.getMethodName(invocation);
// 设置 path 和 version 到 attachment 中
inv.setAttachment(Constants.PATH_KEY, getUrl().getPath());
inv.setAttachment(Constants.VERSION_KEY, version);
ExchangeClient currentClient;
if (clients.length == 1) {
// 从 clients 数组中获取 ExchangeClient
currentClient = clients[0];
} else {
currentClient = clients[index.getAndIncrement() % clients.length];
}
try {
// 获取异步配置
boolean isAsync = RpcUtils.isAsync(getUrl(), invocation);
// isOneway 为 true,表示“单向”通信
boolean isOneway = RpcUtils.isOneway(getUrl(), invocation);
int timeout = getUrl().getMethodParameter(methodName, Constants.TIMEOUT_KEY, Constants.DEFAULT_TIMEOUT);
// 异步无返回值
if (isOneway) {
boolean isSent = getUrl().getMethodParameter(methodName, Constants.SENT_KEY, false);
// 发送请求
currentClient.send(inv, isSent);
// 设置上下文中的 future 字段为 null
RpcContext.getContext().setFuture(null);
// 返回一个空的 RpcResult
return new RpcResult();
}
// 异步有返回值
else if (isAsync) {
// 发送请求,并得到一个 ResponseFuture 实例
ResponseFuture future = currentClient.request(inv, timeout);
// 设置 future 到上下文中
RpcContext.getContext().setFuture(new FutureAdapter<Object>(future));
// 暂时返回一个空结果
return new RpcResult();
}
// 同步调用
else {
RpcContext.getContext().setFuture(null);
// 发送请求,得到一个 ResponseFuture 实例,并调用该实例的 get 方法进行等待
return (Result) currentClient.request(inv, timeout).get();
}
} catch (TimeoutException e) {
throw new RpcException(..., "Invoke remote method timeout....");
} catch (RemotingException e) {
throw new RpcException(..., "Failed to invoke remote method: ...");
}
}
// 省略其他方法
}
以上时Dubbo对同步和异步调用的处理逻辑,关于在于谁调用ResponseFuture的get方法;
默认同步模式下,由框架自身调用ResponseFuture的get方法,
异步调用模式下,由用户调用该方法。
ResponseFuture是一个接口,默认实现类是DefaultFuture
public class DefaultFuture implements ResponseFuture {
private static final Map<Long, Channel> CHANNELS =
new ConcurrentHashMap<Long, Channel>();
private static final Map<Long, DefaultFuture> FUTURES =
new ConcurrentHashMap<Long, DefaultFuture>();
private final long id;
private final Channel channel;
private final Request request;
private final int timeout;
private final Lock lock = new ReentrantLock();
private final Condition done = lock.newCondition();
private volatile Response response;
public DefaultFuture(Channel channel, Request request, int timeout) {
this.channel = channel;
this.request = request;
// 获取请求 id,这个 id 很重要,后面还会见到
this.id = request.getId();
this.timeout = timeout > 0 ? timeout : channel.getUrl().getPositiveParameter(Constants.TIMEOUT_KEY, Constants.DEFAULT_TIMEOUT);
// 存储 <requestId, DefaultFuture> 映射关系到 FUTURES 中
FUTURES.put(id, this);
CHANNELS.put(id, channel);
}
@Override
public Object get() throws RemotingException {
return get(timeout);
}
@Override
public Object get(int timeout) throws RemotingException {
if (timeout <= 0) {
timeout = Constants.DEFAULT_TIMEOUT;
}
// 检测服务提供方是否成功返回了调用结果
if (!isDone()) {
long start = System.currentTimeMillis();
lock.lock();
try {
// 循环检测服务提供方是否成功返回了调用结果
while (!isDone()) {
// 如果调用结果尚未返回,这里等待一段时间
done.await(timeout, TimeUnit.MILLISECONDS);
// 如果调用结果成功返回,或等待超时,此时跳出 while 循环,执行后续的逻辑
if (isDone() || System.currentTimeMillis() - start > timeout) {
break;
}
}
} catch (InterruptedException e) {
throw new RuntimeException(e);
} finally {
lock.unlock();
}
// 如果调用结果仍未返回,则抛出超时异常
if (!isDone()) {
throw new TimeoutException(sent > 0, channel, getTimeoutMessage(false));
}
}
// 返回调用结果
return returnFromResponse();
}
@Override
public boolean isDone() {
// 通过检测 response 字段为空与否,判断是否收到了调用结果
return response != null;
}
private Object returnFromResponse() throws RemotingException {
Response res = response;
if (res == null) {
throw new IllegalStateException("response cannot be null");
}
// 如果调用结果的状态为 Response.OK,则表示调用过程正常,服务提供方成功返回了调用结果
if (res.getStatus() == Response.OK) {
return res.getResult();
}
// 抛出异常
if (res.getStatus() == Response.CLIENT_TIMEOUT || res.getStatus() == Response.SERVER_TIMEOUT) {
throw new TimeoutException(res.getStatus() == Response.SERVER_TIMEOUT, channel, res.getErrorMessage());
}
throw new RemotingException(channel, res.getErrorMessage());
}
// 省略其他方法
}
当服务消费者还会受到调用结果事后,用户线程调用get方法会被阻塞住。
同步调用模式下,框架获得返回的DefaultFuture对象后,会立即调用get方法进行等待。
异步模式下,将对象封装到FutureAdapter实例中,并将FutureAdapter实例设置到RpcContext中,供用户使用。
FutureAdapter是一个适配器,用于将Dubbo中的ResponseFuture与JDK中的Future进行适配,当用户线程调用Future的get方法时,经过FutureAdapter适配,最终会调用ResponseFuture实现类对象的get方法,也就是DefaultFuture的get方法;
2.2 服务消费方发送请求
2.2.1 消费方请求调用路径示例:
proxy0#sayHello(String)
// 确定调用方式
—> InvokerInvocationHandler#invoke(Object, Method, Object[])
—> MockClusterInvoker#invoke(Invocation)
—> AbstractClusterInvoker#invoke(Invocation)
—> FailoverClusterInvoker#doInvoke(Invocation, List<Invoker>, LoadBalance)
—> Filter#invoke(Invoker, Invocation) // 包含多个 Filter 调用
—> ListenerInvokerWrapper#invoke(Invocation)
—> AbstractInvoker#invoke(Invocation)
—> DubboInvoker#doInvoke(Invocation)
// ReferenceCountExchangeClient维护一个引用计数变量,根据对象被引用和close进行增减
// 其他方法均是调用被装饰对象的相关方法
—> ReferenceCountExchangeClient#request(Object, int)
// HeaderExchangeClient的很多方法都是调用HeaderExchangeChannel对象的同签名方法,
// HeaderExchangeClient主要用于封装一些关于心跳检测的逻辑
—> HeaderExchangeClient#request(Object, int)
—> HeaderExchangeChannel#request(Object, int)
// 定义了一个 Request 对象,然后再将该对象传给 NettyClient 的 send 方法
// NettyClient 的 send 方法继承自父类AbstractPeer
—> AbstractPeer#send(Object)
—> AbstractClient#send(Object, boolean)
—> NettyChannel#send(Object, boolean)
—> NioClientSocketChannel#write(Object)
>
<a name="SlO2i"></a>
### 2.2.2 请求编码

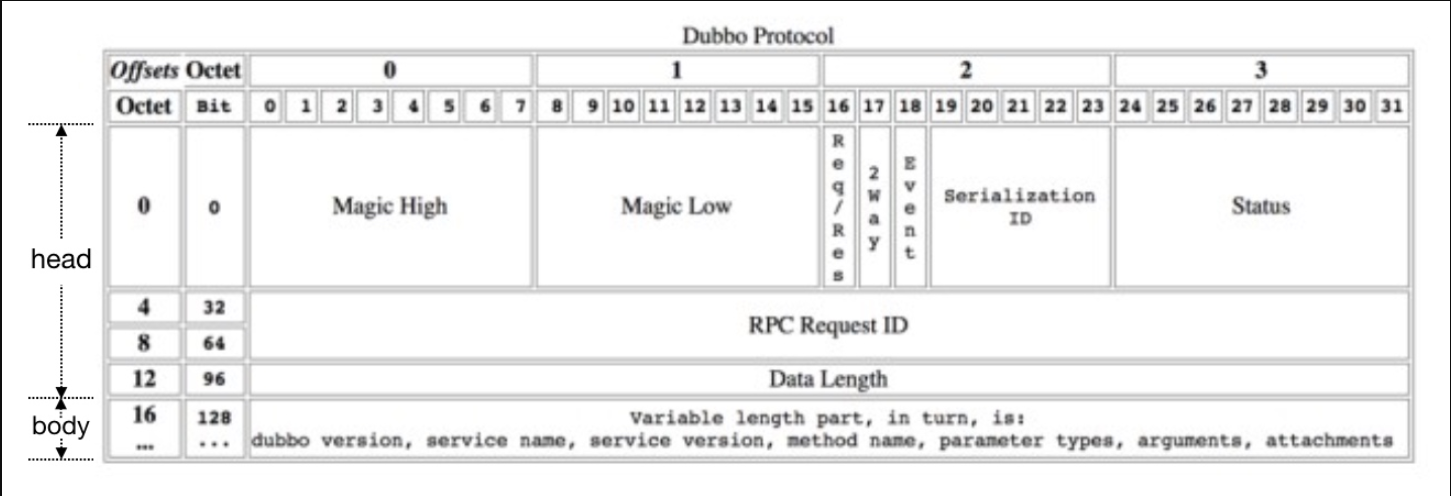

![image.png](https://cdn.nlark.com/yuque/0/2019/png/198536/1564897427419-03e22233-58fd-4c82-ae4a-72b282c76058.png#align=left&display=inline&height=361&name=image.png&originHeight=496&originWidth=1451&size=287609&status=done&width=1055.2727272727273)<br />数据包分为消息头和消息体,
- 消息头(header):用于存储一些元信息
- 魔数(Magic)
- 数据包类型(Request/Response)
- 消息体长度(Data Length)
- 消息体(body):用于存储具体的调用信息
- 方法名
- 参数列表
请求对象的编码过程主要包含以下逻辑:
1. 首先会通过位运算符将**消息头写入到header数组、**
1. 然后对Request对象的data字段执行**序列化操作**,序列化后的数据最终会存储到ChannelBuffer中。
1. 序列化操作执行完后,可得到数据序列化后的长度len,将len写入到header指定位置处。
1. 将消息头字节数组header写入到ChannelBuffer中,整个编码过程结束。
<a name="LC11V"></a>
## 2.3 服务提供方接收请求
默认情况下Dubbo使用Netty作为底层的通信框架,Netty检测到有数据入站后,首先会通过解码器对数据进行解码,然后将解码后的数据传递给下一个入栈处理器的制定方法,下面来分析数据解码的过程
<a name="LQO3l"></a>
### 2.3.1 请求解码
ExchangeCodec类decode方法解码<br />
```java
public class ExchangeCodec extends TelnetCodec {
@Override
public Object decode(Channel channel, ChannelBuffer buffer) throws IOException {
int readable = buffer.readableBytes();
// 创建消息头字节数组
byte[] header = new byte[Math.min(readable, HEADER_LENGTH)];
// 读取消息头数据
buffer.readBytes(header);
// 调用重载方法进行后续解码工作
return decode(channel, buffer, readable, header);
}
@Override
protected Object decode(Channel channel, ChannelBuffer buffer, int readable, byte[] header) throws IOException {
// 检查魔数是否相等
if (readable > 0 && header[0] != MAGIC_HIGH
|| readable > 1 && header[1] != MAGIC_LOW) {
int length = header.length;
if (header.length < readable) {
header = Bytes.copyOf(header, readable);
buffer.readBytes(header, length, readable - length);
}
for (int i = 1; i < header.length - 1; i++) {
if (header[i] == MAGIC_HIGH && header[i + 1] == MAGIC_LOW) {
buffer.readerIndex(buffer.readerIndex() - header.length + i);
header = Bytes.copyOf(header, i);
break;
}
}
// 通过 telnet 命令行发送的数据包不包含消息头,所以这里
// 调用 TelnetCodec 的 decode 方法对数据包进行解码
return super.decode(channel, buffer, readable, header);
}
// 检测可读数据量是否少于消息头长度,若小於则立即返回 DecodeResult.NEED_MORE_INPUT
if (readable < HEADER_LENGTH) {
return DecodeResult.NEED_MORE_INPUT;
}
// 从消息头中获取消息体长度
int len = Bytes.bytes2int(header, 12);
// 检测消息体长度是否超出限制,超出则抛出异常
checkPayload(channel, len);
int tt = len + HEADER_LENGTH;
// 检测可读的字节数是否小于实际的字节数
if (readable < tt) {
return DecodeResult.NEED_MORE_INPUT;
}
ChannelBufferInputStream is = new ChannelBufferInputStream(buffer, len);
try {
// 继续进行解码工作-- 子类DubboCodec 重写了该方法
// 在运行时子类DubboCodec的decodeBody方法会被调用
return decodeBody(channel, is, header);
} finally {
if (is.available() > 0) {
try {
StreamUtils.skipUnusedStream(is);
} catch (IOException e) {
logger.warn(e.getMessage(), e);
}
}
}
}
}
解码部分的主要逻辑:
- 检测消息头的魔数与规定的是否相等,提前拦截掉非常规数据包
- 对消息体长度以及刻度字节数进行检测。
- 调用子类 DubboCodec 的decodeBody方法进行后续解码工作
- DubboCodec.decodeBody只对部分字段解码,将解码得到的字段封装到Request中。
- DecodeableRpcInvocation.decode 后续解码工作,通过反序列化将调用方法名,path,version,调用方法名,参数列表等依次解析出来,并设置到相应的字段汇总,最后得到一个完整的ecodeableRpcInvocation 对象。
- 最后得到一个完整的Request对象,该对象将被传送到下一个入站处理器中。
### 2.3.2 调用服务 NettyHandler的messageReceived方法会接收上面解码后的Request对象,并依次往下传递对象,这期间会经历NettyServer,MultiMessageHandler,HeartbeatHandler,以及AllChannelHandler。最后由AllChannelHandler将该对象封装到Runnable实现类对象中,并将Runnable放入线程池中进行后续调用逻辑。调用栈如下:
NettyHandler#messageReceived(ChannelHandlerContext, MessageEvent)
—> AbstractPeer#received(Channel, Object)
—> MultiMessageHandler#received(Channel, Object)
—> HeartbeatHandler#received(Channel, Object)
—> AllChannelHandler#received(Channel, Object)
—> ExecutorService#execute(Runnable) // 由线程池执行后续的调用逻辑
2.3.2.1 线程派发模型
线程派发器所处位置:
线程派发的背景:
Dubbo将底层通信框架中接受请求的线程成为IO线程,如果一些事件处理逻辑可以很快执行完,比如只在内存打个标记,此时直接在IO线程上执行。但如果事件的处理比较耗时(需要发起数据库查询或者http请求等),我们就不应该让事件处理逻辑在IO线程上执行,而是派发到线程池中执行。
为什么要派发到线程池呢?
IO线程主要用于接收请求,如果IO线程被占满,将导致它不能接收新的请求。
线程派发器Dispatcher的职责:
Dispatcher本身不具备线程派发能力,他真正的职责是创建具有线程派发能力的ChannelHandler,比如AllChannelHandler,MessageOnlyChannelHandler等,这些不同的XXHandler分别对应着不同的派发策略。
策略 | 用途 |
---|---|
all(默认策略) | 所有消息都派发到线程池,包括请求,响应,连接事件,断开事件等 |
direct | 所有消息都不派发到线程池,全部在 IO 线程上直接执行 |
message | 只有请求和响应消息派发到线程池,其它消息均在 IO 线程上执行 |
execution | 只有请求消息派发到线程池,不含响应。其它消息均在 IO 线程上执行 |
connection | 在 IO 线程上,将连接断开事件放入队列,有序逐个执行,其它消息派发到线程池 |
Dubbo默认的线程派发策略是all,也就是默认创建AllChannelHandler将所有的消息都派发到线程池去执行。下面看一下AllChannelHandler的实现细节。
public class AllChannelHandler extends WrappedChannelHandler {
public AllChannelHandler(ChannelHandler handler, URL url) {
super(handler, url);
}
/** 处理连接事件 */
@Override
public void connected(Channel channel) throws RemotingException {
// 获取线程池
ExecutorService cexecutor = getExecutorService();
try {
// 将连接事件派发到线程池中处理
cexecutor.execute(new ChannelEventRunnable(channel, handler, ChannelState.CONNECTED));
} catch (Throwable t) {
throw new ExecutionException(..., " error when process connected event .", t);
}
}
/** 处理断开事件 */
@Override
public void disconnected(Channel channel) throws RemotingException {
ExecutorService cexecutor = getExecutorService();
try {
cexecutor.execute(new ChannelEventRunnable(channel, handler, ChannelState.DISCONNECTED));
} catch (Throwable t) {
throw new ExecutionException(..., "error when process disconnected event .", t);
}
}
/** 处理请求和响应消息,这里的 message 变量类型可能是 Request,也可能是 Response */
@Override
public void received(Channel channel, Object message) throws RemotingException {
ExecutorService cexecutor = getExecutorService();
try {
// 将请求和响应消息派发到线程池中处理
cexecutor.execute(new ChannelEventRunnable(channel, handler, ChannelState.RECEIVED, message));
} catch (Throwable t) {
if(message instanceof Request && t instanceof RejectedExecutionException){
Request request = (Request)message;
// 如果通信方式为双向通信,此时将 Server side ... threadpool is exhausted
// 错误信息封装到 Response 中,并返回给服务消费方。
if(request.isTwoWay()){
String msg = "Server side(" + url.getIp() + "," + url.getPort()
+ ") threadpool is exhausted ,detail msg:" + t.getMessage();
Response response = new Response(request.getId(), request.getVersion());
response.setStatus(Response.SERVER_THREADPOOL_EXHAUSTED_ERROR);
response.setErrorMessage(msg);
// 返回包含错误信息的 Response 对象
channel.send(response);
return;
}
}
throw new ExecutionException(..., " error when process received event .", t);
}
}
/** 处理异常信息 */
@Override
public void caught(Channel channel, Throwable exception) throws RemotingException {
ExecutorService cexecutor = getExecutorService();
try {
// 请求对象被封装在ChannelEventRunnable中
cexecutor.execute(new ChannelEventRunnable(channel, handler, ChannelState.CAUGHT, exception));
} catch (Throwable t) {
throw new ExecutionException(..., "error when process caught event ...");
}
}
}
请求对象被封装在ChannelEventRunnable中,ChannelEventRunnable也是服务调用过程的下一个起点。
2.3.2.2 调用服务
从起点ChannelEventRunnable 开始分析:
public class ChannelEventRunnable implements Runnable {
private final ChannelHandler handler;
private final Channel channel;
private final ChannelState state;
private final Throwable exception;
private final Object message;
@Override
public void run() {
// 检测通道状态,对于请求或响应消息,此时 state = RECEIVED
if (state == ChannelState.RECEIVED) {
try {
// 将 channel 和 message 传给 ChannelHandler 对象,进行后续的调用
handler.received(channel, message);
} catch (Exception e) {
logger.warn("... operation error, channel is ... message is ...");
}
}
// 其他消息类型通过 switch 进行处理
else {
switch (state) {
case CONNECTED:
try {
handler.connected(channel);
} catch (Exception e) {
logger.warn("... operation error, channel is ...");
}
break;
case DISCONNECTED:
// ...
case SENT:
// ...
case CAUGHT:
// ...
default:
logger.warn("unknown state: " + state + ", message is " + message);
}
}
}
}
ChannelEventRunnable仅仅是一个中转站,他的run方法并不包含具体的调用逻辑,只是根据消息的类型将消息传递给其他ChannelHandler对象进行处理。
DecodeHandler的处理如下:
public class DecodeHandler extends AbstractChannelHandlerDelegate {
public DecodeHandler(ChannelHandler handler) {
super(handler);
}
@Override
public void received(Channel channel, Object message) throws RemotingException {
if (message instanceof Decodeable) {
// 对 Decodeable 接口实现类对象进行解码
decode(message);
}
if (message instanceof Request) {
// 对 Request 的 data 字段进行解码
decode(((Request) message).getData());
}
if (message instanceof Response) {
// 对 Request 的 result 字段进行解码
decode(((Response) message).getResult());
}
// 执行后续逻辑
handler.received(channel, message);
}
private void decode(Object message) {
// Decodeable 接口目前有两个实现类,
// 分别为 DecodeableRpcInvocation 和 DecodeableRpcResult
if (message != null && message instanceof Decodeable) {
try {
// 执行解码逻辑
((Decodeable) message).decode();
} catch (Throwable e) {
if (log.isWarnEnabled()) {
log.warn("Call Decodeable.decode failed: " + e.getMessage(), e);
}
}
}
}
}
DecodeHandler 主要是包含了一些解码逻辑,请求解码可在IO线程上执行,也可在线程池中执行,取决运行时配置的线程派发策略,DecodeHandler就是用来保证请求或响应对象刻在线程池中被解码,解码完毕后的Request对象会被传递给下一站HeaderExchangeHandler.
public class HeaderExchangeHandler implements ChannelHandlerDelegate {
private final ExchangeHandler handler;
public HeaderExchangeHandler(ExchangeHandler handler) {
if (handler == null) {
throw new IllegalArgumentException("handler == null");
}
this.handler = handler;
}
@Override
public void received(Channel channel, Object message) throws RemotingException {
channel.setAttribute(KEY_READ_TIMESTAMP, System.currentTimeMillis());
ExchangeChannel exchangeChannel = HeaderExchangeChannel.getOrAddChannel(channel);
try {
// 处理请求对象
if (message instanceof Request) {
Request request = (Request) message;
if (request.isEvent()) {
// 处理事件
handlerEvent(channel, request);
}
// 处理普通的请求
else {
// 双向通信
if (request.isTwoWay()) {
// 向后调用服务,并得到调用结果
Response response = handleRequest(exchangeChannel, request);
// 将调用结果返回给服务消费端
channel.send(response);
}
// 如果是单向通信,仅向后调用指定服务即可,无需返回调用结果
else {
handler.received(exchangeChannel, request.getData());
}
}
}
// 处理响应对象,服务消费方会执行此处逻辑,后面分析
else if (message instanceof Response) {
handleResponse(channel, (Response) message);
} else if (message instanceof String) {
// telnet 相关,忽略
} else {
handler.received(exchangeChannel, message);
}
} finally {
HeaderExchangeChannel.removeChannelIfDisconnected(channel);
}
}
Response handleRequest(ExchangeChannel channel, Request req) throws RemotingException {
Response res = new Response(req.getId(), req.getVersion());
// 检测请求是否合法,不合法则返回状态码为 BAD_REQUEST 的响应
if (req.isBroken()) {
Object data = req.getData();
String msg;
if (data == null)
msg = null;
else if
(data instanceof Throwable) msg = StringUtils.toString((Throwable) data);
else
msg = data.toString();
res.setErrorMessage("Fail to decode request due to: " + msg);
// 设置 BAD_REQUEST 状态
res.setStatus(Response.BAD_REQUEST);
return res;
}
// 获取 data 字段值,也就是 RpcInvocation 对象
Object msg = req.getData();
try {
// 继续向下调用
Object result = handler.reply(channel, msg);
// 设置 OK 状态码
res.setStatus(Response.OK);
// 设置调用结果
res.setResult(result);
} catch (Throwable e) {
// 若调用过程出现异常,则设置 SERVICE_ERROR,表示服务端异常
res.setStatus(Response.SERVICE_ERROR);
res.setErrorMessage(StringUtils.toString(e));
}
return res;
}
}
HeaderExchangeHandler 里面包含了清晰的请求和响应逻辑,主要逻辑如下:
- 首先向后进行调用,得到调用结果。
- 然后将调用结果封装到Response对象中,最后返回给服务消费方。
- 如果请求不合法或调用失败,将错误信息封装在Response对象中,并返回给消费方。
调用要走的逻辑还是根据协议转发到DubboProtocol中,主要是获取到Invoker对象调用Invoke方法执行业务逻辑。
public class DubboProtocol extends AbstractProtocol {
public static final String NAME = "dubbo";
private ExchangeHandler requestHandler = new ExchangeHandlerAdapter() {
@Override
public Object reply(ExchangeChannel channel, Object message) throws RemotingException {
if (message instanceof Invocation) {
Invocation inv = (Invocation) message;
// 获取 Invoker 实例
Invoker<?> invoker = getInvoker(channel, inv);
if (Boolean.TRUE.toString().equals(inv.getAttachments().get(IS_CALLBACK_SERVICE_INVOKE))) {
// 回调相关,忽略
}
RpcContext.getContext().setRemoteAddress(channel.getRemoteAddress());
// 通过 Invoker 调用具体的服务
return invoker.invoke(inv);
}
throw new RemotingException(channel, "Unsupported request: ...");
}
// 忽略其他方法
}
Invoker<?> getInvoker(Channel channel, Invocation inv) throws RemotingException {
// 忽略回调和本地存根相关逻辑
// ...
int port = channel.getLocalAddress().getPort();
// 计算 service key,格式为 groupName/serviceName:serviceVersion:port。比如:
// dubbo/com.alibaba.dubbo.demo.DemoService:1.0.0:20880
String serviceKey = serviceKey(port, path, inv.getAttachments().get(Constants.VERSION_KEY), inv.getAttachments().get(Constants.GROUP_KEY));
// 从 exporterMap 查找与 serviceKey 相对应的 DubboExporter 对象,
// 服务导出过程中会将 <serviceKey, DubboExporter> 映射关系存储到 exporterMap 集合中
DubboExporter<?> exporter = (DubboExporter<?>) exporterMap.get(serviceKey);
if (exporter == null)
throw new RemotingException(channel, "Not found exported service ...");
// 获取 Invoker 对象,并返回
return exporter.getInvoker();
}
// 忽略其他方法
}
根据指定的服务获取到指定的Invoker实例之后,需要调用对应的invoke方法,invoke方法被定义在抽象类AbstractProxyInvoker中:
public abstract class AbstractProxyInvoker<T> implements Invoker<T> {
@Override
public Result invoke(Invocation invocation) throws RpcException {
try {
// 调用 doInvoke 执行后续的调用,并将调用结果封装到 RpcResult 中,并
return new RpcResult(doInvoke(proxy, invocation.getMethodName(), invocation.getParameterTypes(), invocation.getArguments()));
} catch (InvocationTargetException e) {
return new RpcResult(e.getTargetException());
} catch (Throwable e) {
throw new RpcException("Failed to invoke remote proxy method ...");
}
}
protected abstract Object doInvoke(T proxy, String methodName, Class<?>[] parameterTypes, Object[] arguments) throws Throwable;
}
doInvoke依旧是一个抽象方法,具体的实现需要对应的Invoker实例来实现,Invoker实例就是在服务引用过程中通过JavassitProxyFactory创建的,回顾一下,创建逻辑如下:
public class JavassistProxyFactory extends AbstractProxyFactory {
// 省略其他方法
@Override
public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {
final Wrapper wrapper = Wrapper.getWrapper(proxy.getClass().getName().indexOf('$') < 0 ? proxy.getClass() : type);
// 创建匿名类对象
return new AbstractProxyInvoker<T>(proxy, type, url) {
@Override
protected Object doInvoke(T proxy, String methodName,
Class<?>[] parameterTypes,
Object[] arguments) throws Throwable {
// 调用 invokeMethod 方法进行后续的调用
return wrapper.invokeMethod(proxy, methodName, parameterTypes, arguments);
}
};
}
}
Wrapper是一个抽象类,调用的invokeMethod是一个抽象方法,dubbo会在运行时候利用Javassist为wrapper生成一个实现类,并实现其invokeMethod方法,该方法会根据调用信息调用具体的服务。
整个调用过程的调用链如下:
ChannelEventRunnable#run()
—> DecodeHandler#received(Channel, Object)
—> HeaderExchangeHandler#received(Channel, Object)
—> HeaderExchangeHandler#handleRequest(ExchangeChannel, Request)
—> DubboProtocol.requestHandler#reply(ExchangeChannel, Object)
—> Filter#invoke(Invoker, Invocation)
—> AbstractProxyInvoker#invoke(Invocation)
—> Wrapper0#invokeMethod(Object, String, Class[], Object[])
—> DemoServiceImpl#sayHello(String)
2.4 服务端返回调用结果
服务端返回调用结果主要是调用Netty的send方法将调用结果response对象返回,但response对象在返回前也需要进行编码,这块的编码和2.3.1中分析的请求编码的逻辑是比较像的。结合着看比较容易理解。
public class ExchangeCodec extends TelnetCodec {
public void encode(Channel channel, ChannelBuffer buffer, Object msg) throws IOException {
if (msg instanceof Request) {
encodeRequest(channel, buffer, (Request) msg);
} else if (msg instanceof Response) {
// 对响应对象进行编码
encodeResponse(channel, buffer, (Response) msg);
} else {
super.encode(channel, buffer, msg);
}
}
protected void encodeResponse(Channel channel, ChannelBuffer buffer, Response res) throws IOException {
int savedWriteIndex = buffer.writerIndex();
try {
Serialization serialization = getSerialization(channel);
// 创建消息头字节数组
byte[] header = new byte[HEADER_LENGTH];
// 设置魔数
Bytes.short2bytes(MAGIC, header);
// 设置序列化器编号
header[2] = serialization.getContentTypeId();
if (res.isHeartbeat()) header[2] |= FLAG_EVENT;
// 获取响应状态
byte status = res.getStatus();
// 设置响应状态
header[3] = status;
// 设置请求编号
Bytes.long2bytes(res.getId(), header, 4);
// 更新 writerIndex,为消息头预留 16 个字节的空间
buffer.writerIndex(savedWriteIndex + HEADER_LENGTH);
ChannelBufferOutputStream bos = new ChannelBufferOutputStream(buffer);
ObjectOutput out = serialization.serialize(channel.getUrl(), bos);
if (status == Response.OK) {
if (res.isHeartbeat()) {
// 对心跳响应结果进行序列化,已废弃
encodeHeartbeatData(channel, out, res.getResult());
} else {
// 对调用结果进行序列化
encodeResponseData(channel, out, res.getResult(), res.getVersion());
}
} else {
// 对错误信息进行序列化
out.writeUTF(res.getErrorMessage())
};
out.flushBuffer();
if (out instanceof Cleanable) {
((Cleanable) out).cleanup();
}
bos.flush();
bos.close();
// 获取写入的字节数,也就是消息体长度
int len = bos.writtenBytes();
checkPayload(channel, len);
// 将消息体长度写入到消息头中
Bytes.int2bytes(len, header, 12);
// 将 buffer 指针移动到 savedWriteIndex,为写消息头做准备
buffer.writerIndex(savedWriteIndex);
// 从 savedWriteIndex 下标处写入消息头
buffer.writeBytes(header);
// 设置新的 writerIndex,writerIndex = 原写下标 + 消息头长度 + 消息体长度
buffer.writerIndex(savedWriteIndex + HEADER_LENGTH + len);
} catch (Throwable t) {
// 异常处理逻辑不是很难理解,但是代码略多,这里忽略了
}
}
}
public class DubboCodec extends ExchangeCodec implements Codec2 {
protected void encodeResponseData(Channel channel, ObjectOutput out, Object data, String version) throws IOException {
Result result = (Result) data;
// 检测当前协议版本是否支持带有 attachment 集合的 Response 对象
boolean attach = Version.isSupportResponseAttachment(version);
Throwable th = result.getException();
// 异常信息为空
if (th == null) {
Object ret = result.getValue();
// 调用结果为空
if (ret == null) {
// 序列化响应类型
out.writeByte(attach ? RESPONSE_NULL_VALUE_WITH_ATTACHMENTS : RESPONSE_NULL_VALUE);
}
// 调用结果非空
else {
// 序列化响应类型
out.writeByte(attach ? RESPONSE_VALUE_WITH_ATTACHMENTS : RESPONSE_VALUE);
// 序列化调用结果
out.writeObject(ret);
}
}
// 异常信息非空
else {
// 序列化响应类型
out.writeByte(attach ? RESPONSE_WITH_EXCEPTION_WITH_ATTACHMENTS : RESPONSE_WITH_EXCEPTION);
// 序列化异常对象
out.writeObject(th);
}
if (attach) {
// 记录 Dubbo 协议版本
result.getAttachments().put(Constants.DUBBO_VERSION_KEY, Version.getProtocolVersion());
// 序列化 attachments 集合
out.writeObject(result.getAttachments());
}
}
}
2.5 服务消费方接收调用结果
消费方收到服务方返回的数据包之后首先要进行解码得到Response对象,然后再将该对象传递给NettyHandler处理器,NettyHandler处理器会依次往下传递,最后AllChannelHandler会接收到这个响应对象将其派发到线程池中,这个过程与服务端的过程是一致的,不再赘述。这块重点分析一下如何对数据包解码成Response对象,和如何将结果返回给用户线程。
2.5.1 对响应数据解码
这块的逻辑主要封装在DubboCodec中,和请求解码部分的逻辑基本是一致的。
public class DubboCodec extends ExchangeCodec implements Codec2 {
@Override
protected Object decodeBody(Channel channel, InputStream is, byte[] header) throws IOException {
byte flag = header[2], proto = (byte) (flag & SERIALIZATION_MASK);
Serialization s = CodecSupport.getSerialization(channel.getUrl(), proto);
// 获取请求编号
long id = Bytes.bytes2long(header, 4);
// 检测消息类型,若下面的条件成立,表明消息类型为 Response
if ((flag & FLAG_REQUEST) == 0) {
// 创建 Response 对象
Response res = new Response(id);
// 检测事件标志位
if ((flag & FLAG_EVENT) != 0) {
// 设置心跳事件
res.setEvent(Response.HEARTBEAT_EVENT);
}
// 获取响应状态
byte status = header[3];
// 设置响应状态
res.setStatus(status);
// 如果响应状态为 OK,表明调用过程正常
if (status == Response.OK) {
try {
Object data;
if (res.isHeartbeat()) {
// 反序列化心跳数据,已废弃
data = decodeHeartbeatData(channel, deserialize(s, channel.getUrl(), is));
} else if (res.isEvent()) {
// 反序列化事件数据
data = decodeEventData(channel, deserialize(s, channel.getUrl(), is));
} else {
DecodeableRpcResult result;
// 根据 url 参数决定是否在 IO 线程上执行解码逻辑
if (channel.getUrl().getParameter(
Constants.DECODE_IN_IO_THREAD_KEY,
Constants.DEFAULT_DECODE_IN_IO_THREAD)) {
// 创建 DecodeableRpcResult 对象
result = new DecodeableRpcResult(channel, res, is,
(Invocation) getRequestData(id), proto);
// 进行后续的解码工作
result.decode();
} else {
// 创建 DecodeableRpcResult 对象
result = new DecodeableRpcResult(channel, res,
new UnsafeByteArrayInputStream(readMessageData(is)),
(Invocation) getRequestData(id), proto);
}
data = result;
}
// 设置 DecodeableRpcResult 对象到 Response 对象中
res.setResult(data);
} catch (Throwable t) {
// 解码过程中出现了错误,此时设置 CLIENT_ERROR 状态码到 Response 对象中
res.setStatus(Response.CLIENT_ERROR);
res.setErrorMessage(StringUtils.toString(t));
}
}
// 响应状态非 OK,表明调用过程出现了异常
else {
// 反序列化异常信息,并设置到 Response 对象中
res.setErrorMessage(deserialize(s, channel.getUrl(), is).readUTF());
}
return res;
} else {
// 对请求数据进行解码,前面已分析过,此处忽略
}
}
}
解码完毕后需要将调用结果进行反序列化;
2.5.2 向用户线程传递调用结果
Dubbo会将上一步解码和反序列化完毕的调用结果派发到线程池上,但线程池的线程并不是用户线程,用户的线程此时是阻塞在DefaultFuture的get方法上,因为用户发送完请求后一直在等待get返回的结果Response,在Response到来后用户线程将被唤醒,并通过调用编号获取到自己的响应对象。
public class HeaderExchangeHandler implements ChannelHandlerDelegate {
@Override
public void received(Channel channel, Object message) throws RemotingException {
channel.setAttribute(KEY_READ_TIMESTAMP, System.currentTimeMillis());
ExchangeChannel exchangeChannel = HeaderExchangeChannel.getOrAddChannel(channel);
try {
if (message instanceof Request) {
// 处理请求,前面已分析过,省略
} else if (message instanceof Response) {
// 处理响应
handleResponse(channel, (Response) message);
} else if (message instanceof String) {
// telnet 相关,忽略
} else {
handler.received(exchangeChannel, message);
}
} finally {
HeaderExchangeChannel.removeChannelIfDisconnected(channel);
}
}
static void handleResponse(Channel channel, Response response) throws RemotingException {
if (response != null && !response.isHeartbeat()) {
// 继续向下调用
DefaultFuture.received(channel, response);
}
}
}
public class DefaultFuture implements ResponseFuture {
private final Lock lock = new ReentrantLock();
private final Condition done = lock.newCondition();
private volatile Response response;
public static void received(Channel channel, Response response) {
try {
// 根据调用编号从 FUTURES 集合中查找指定的 DefaultFuture 对象
DefaultFuture future = FUTURES.remove(response.getId());
if (future != null) {
// 继续向下调用
future.doReceived(response);
} else {
logger.warn("The timeout response finally returned at ...");
}
} finally {
CHANNELS.remove(response.getId());
}
}
private void doReceived(Response res) {
lock.lock();
try {
// 保存响应对象
response = res;
if (done != null) {
// 唤醒用户线程
done.signal();
}
} finally {
lock.unlock();
}
if (callback != null) {
invokeCallback(callback);
}
}
}
上述逻辑是将响应对象Response保存到了DefaultFuture实例中,然后再唤醒用户线程,随后用户线程可从DefaultFuture 实例中获取结果对象.下面分析一下具体的逻辑:
- 消费方并发调用多个服务,每个用户线程发出请求后都生成一个DefaultFuture对象,
- 每个DefaultFuture创建时都会传入Request对象,
- DefaultFuture获取到Request对象的调用编号。
- 将<调用编号, DefaultFuture 对象> 存入到一个静态map集和中,即FUTURES.
- 然后调用DefaultFuture的get方法进行等待服务端响应结果Response的到来。
- 线程池的线程在收到Respondse对象时会通过Response对象的调用编号,从FUTURES集和中get到对应key的DefaultFuture对象。
- 将Response对象设置到DefaultFuture对象中。
- 唤醒用户线程,从DefaultFuture的get方法中取到DefaultFuture对象获取调用结果。
** 整个流程图如下:**
